Factory Lead Time

9 Weeks

Mounting Type

Through Hole

Package / Case

24-DIP Module

Number of Pins

12

Weight

12g

Voltage - Input (Nom)

24V

Power - Output (Max)

5W

Power Dissipation (Max)

5W

Operating Temperature

-40°C~85°C With Derating

Packaging

Tube

Series

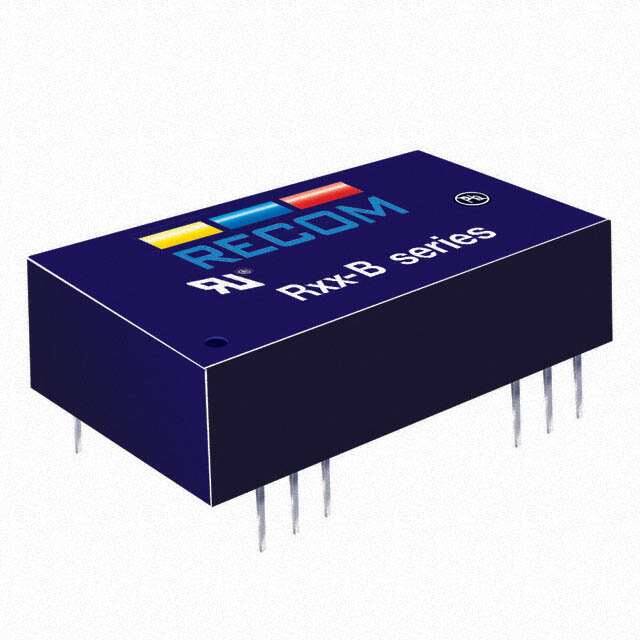

INNOLINE Rxx-B (5W)

Size / Dimension

1.25Lx0.80W x 0.37 H 31.8mmx20.3mmx9.4mm

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

12

ECCN Code

EAR99

Type

High Voltage - Isolated Module

Applications

ITE (Commercial)

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

31.8mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

84%

Voltage - Isolation

3kV

Trim/Adjustable Output

YES

Current - Output (Max)

50mA

Current - Output

50mA

Output Power

5W

Max Output Voltage

135V

Voltage - Output

135V

Control Mode

VOLTAGE-MODE

Current - Output 1

50mA

Nominal Input Voltage

24V

Isolation

Isolated

Nominal Output Voltage

100V

Max Input Voltage (DC)

27V

Min Input Voltage (DC)

21V

Features

SCP

Height

9.4mm

Width

20.3mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
